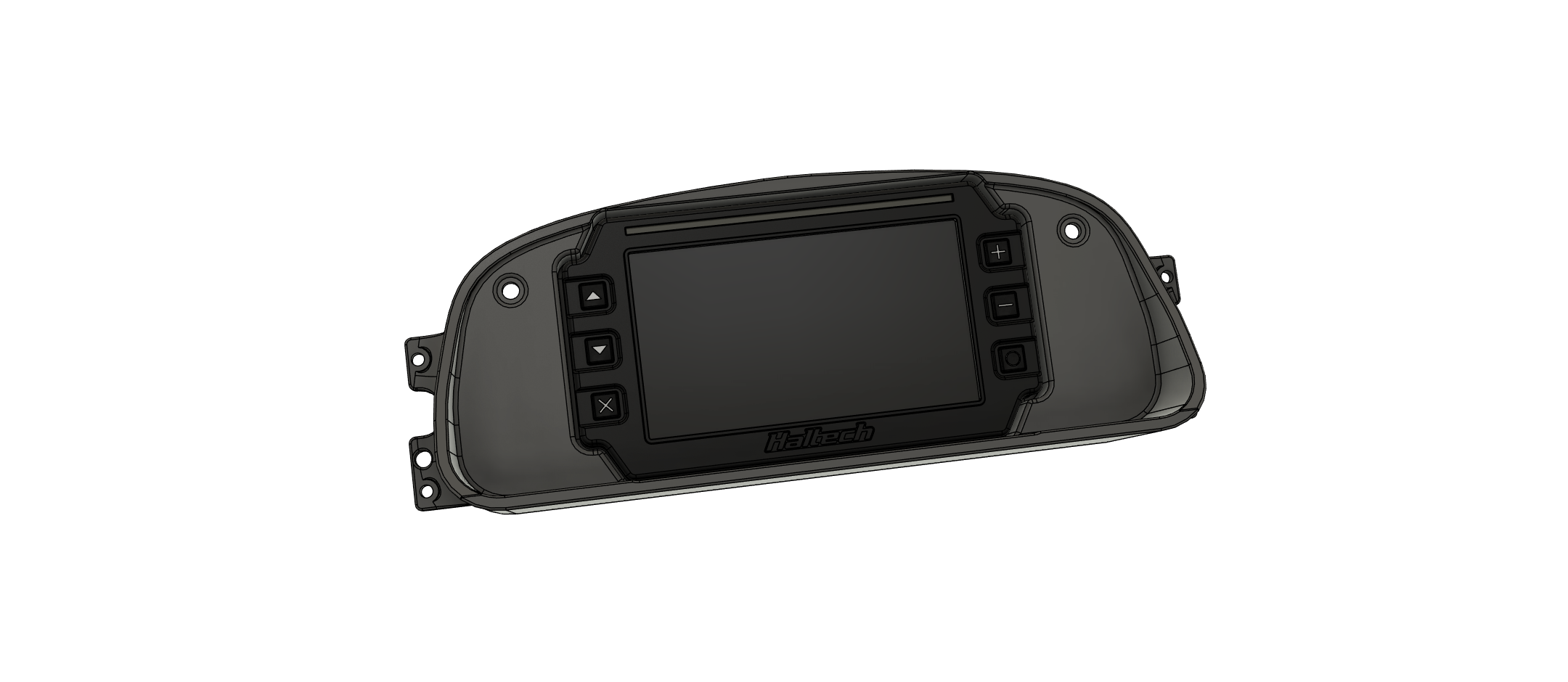

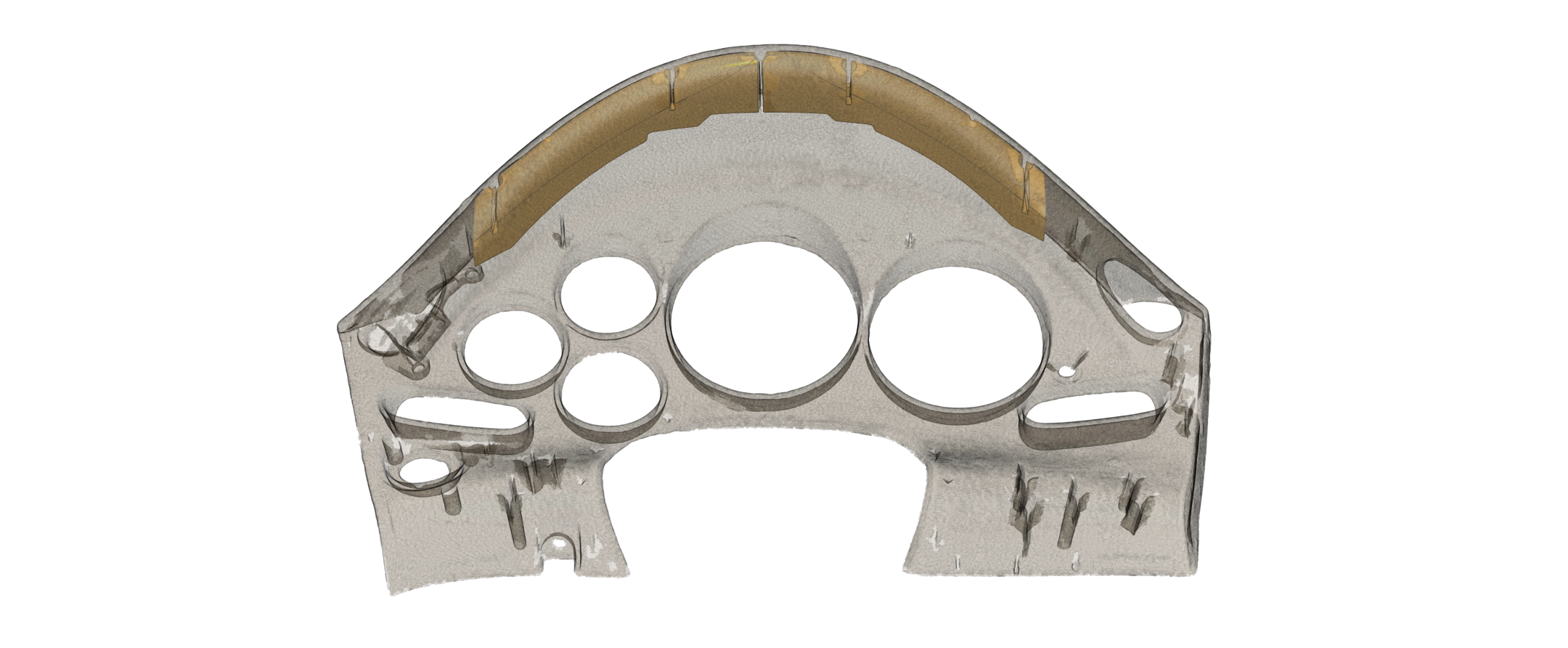

FC Rx7 Cluster

ABS Plastic, stippled black texture finish

choose from display adapter options listed below
DISPLAY NOT INCLUDED

LEDs NOT INCLUDED

If your display or adapter isn’t listed, please contact me: Shanedrakeairforce@gmail.com

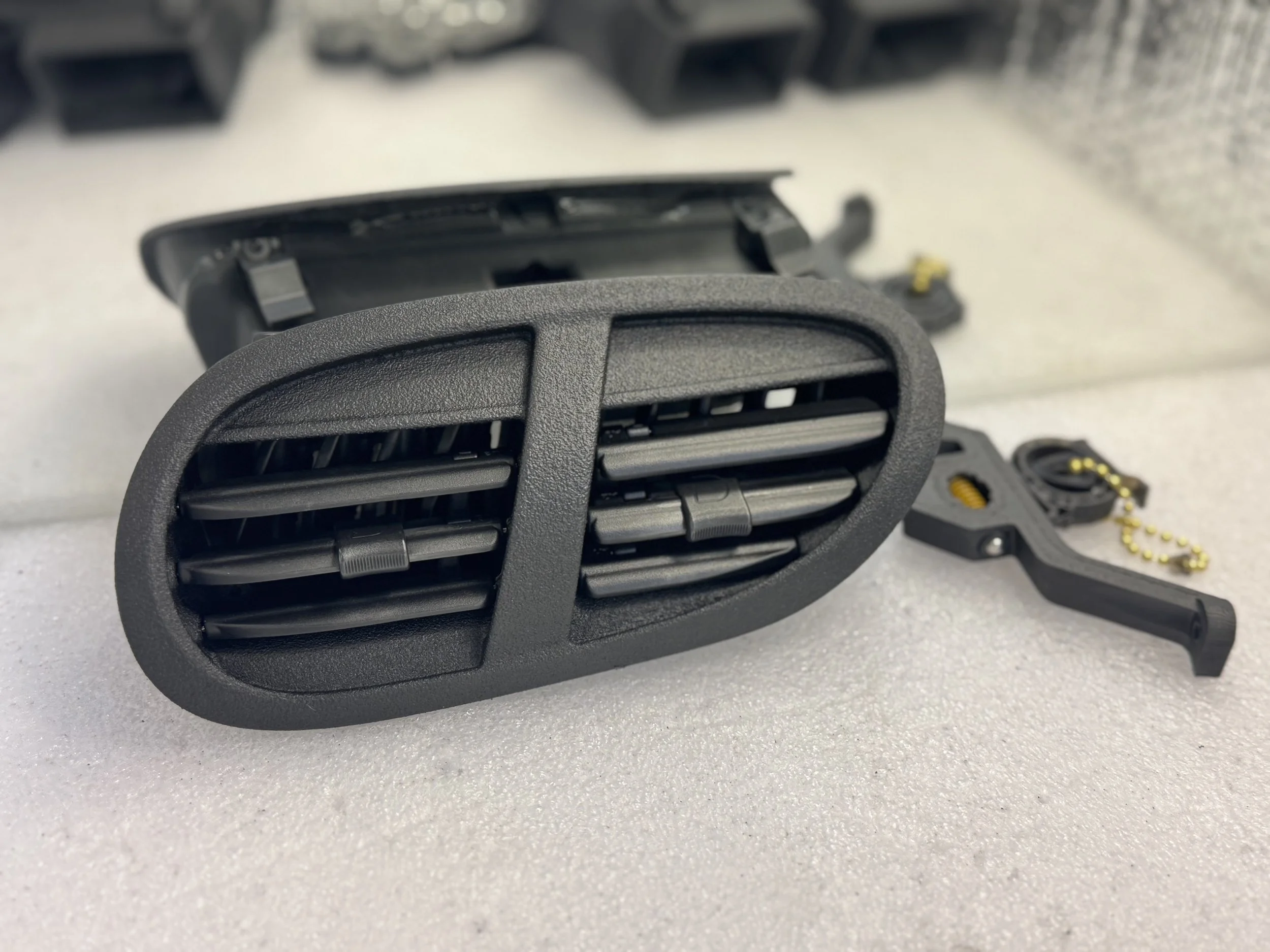

FD3S Center Vent Static Replacement Options

DISCLAIMER: This will replace your cracked or broken one entirely!

DOES NOT INCLUDE 7/8” USB Interface (TOO MANY STYLES AVAILABLE IN THIS FORMAT FOR ME TO OFFER)

includes replaceable clips, M8 Brass Insert, M2/M3 hardware and bracket kit

M8 Ramball and swivel ONLY INCLUDED IF SELECTED at checkout

HAS THE BACK PORTION, comes standard with Housing to adapt to existing ducting, multipart design.

Slats are adjustable only on the options with a functional drivers side insert.

Available in LHD or RHD, just add to cart.
sold in *OE Textured finish

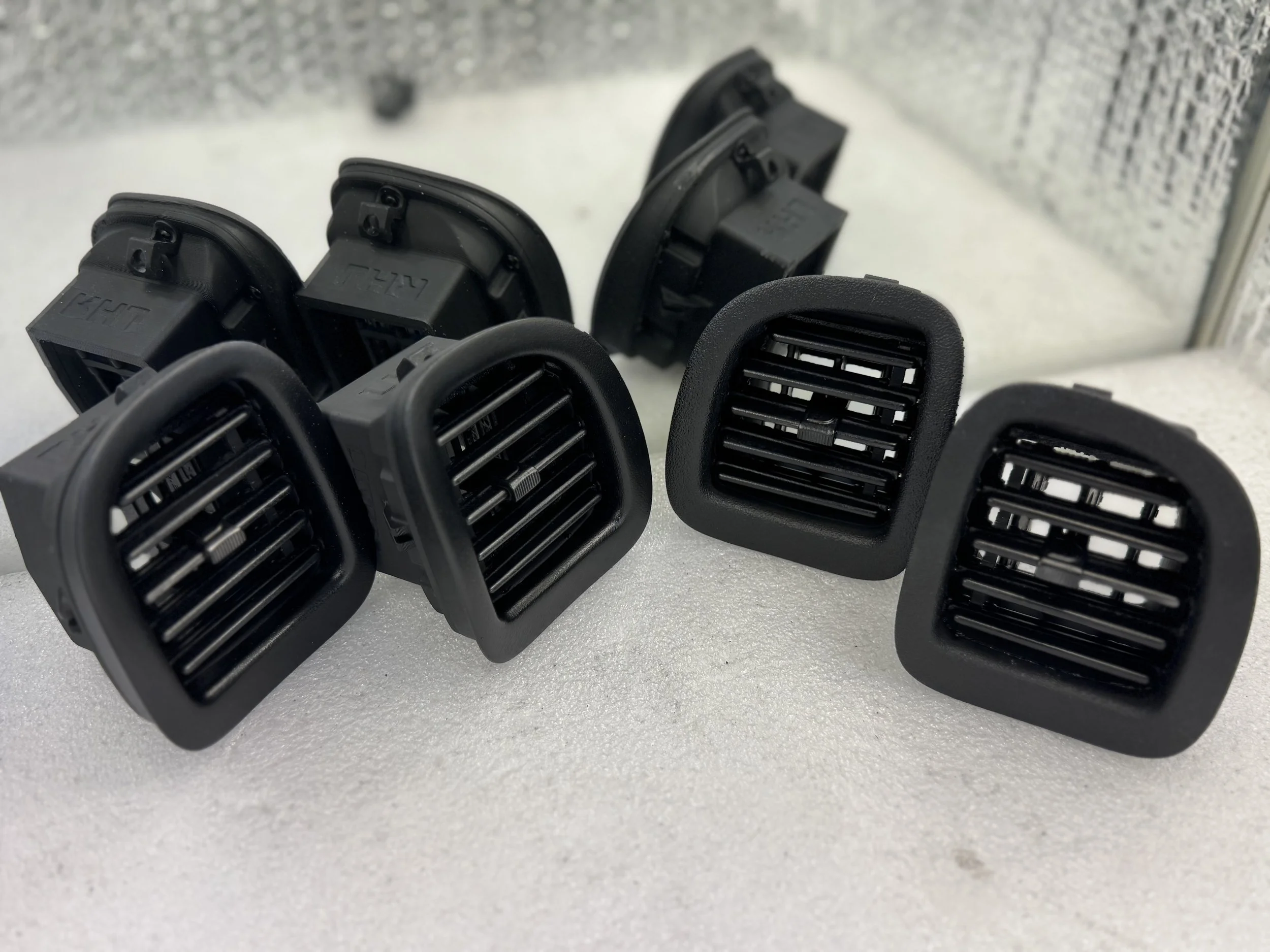

OE Style Replacement Passenger Vent- NOW FULLY FUNCTIONAL

Previously my passenger vent options were static “drop ins” with no functionality.

NOW the vent comes fully assembled, with working vertical and horizontal slats.

The Rear of the Vent extends and aligns with the OE Vent Ducting.

The blades are SEM Coated Resin with Stainless Welding rod in place of plastic pins and joints!

The body is Solid ABS, M3 and M2 hardware, and a replaceable top clip.

Made with SLS and FDM machines, Hand Finished in a Stipple Black Texture

Also offering BLANK, 52mm and 60mm Passenger Vent pods. LHD and RHD available

The passenger vent is removed by depressing a tab on the top portion of the vent from behind and pulling.

careful as the plastic is brittle and the clips are prone to sticking. then simply push in my vent delete

FULLY FUNCTIONAL, COMPLETE REPLACEMENT

LHD and RHD Available! (Select at Checkout)

DASH IN, or DASH OUT INSTALL (OE vent must be removed/missing for DASH in, install..)

Multipart design, ABS FDM/SLA finished in SEM Automotive products.

Stainless Metal Reinforced Pivots and Hinges, Resin Printed Flaps and Slides, FDM ABS Body, Clips and Guides

Multi Directional Adjustability, graphite lubricated slides offer Smooth operation!

Connects Directly to FD Rx7 OEM HVAC Ducting

M2 and M3 Hardware

COMPLETELY SECURE WITHOUT BRACKET, due to major improvements on the mounting system

Replaceable Clips, Serviceable Design

OPTIONAL; Spring Ball Detent Dash Bracket kit, that comes with heat inserts for your dash!

*Not Compatible with Metal OE Vent Bracket, Which can be carefully bent out of the way or removed

Reinforced features with OE fitment , metal alignment pins and even thicker design in 2025

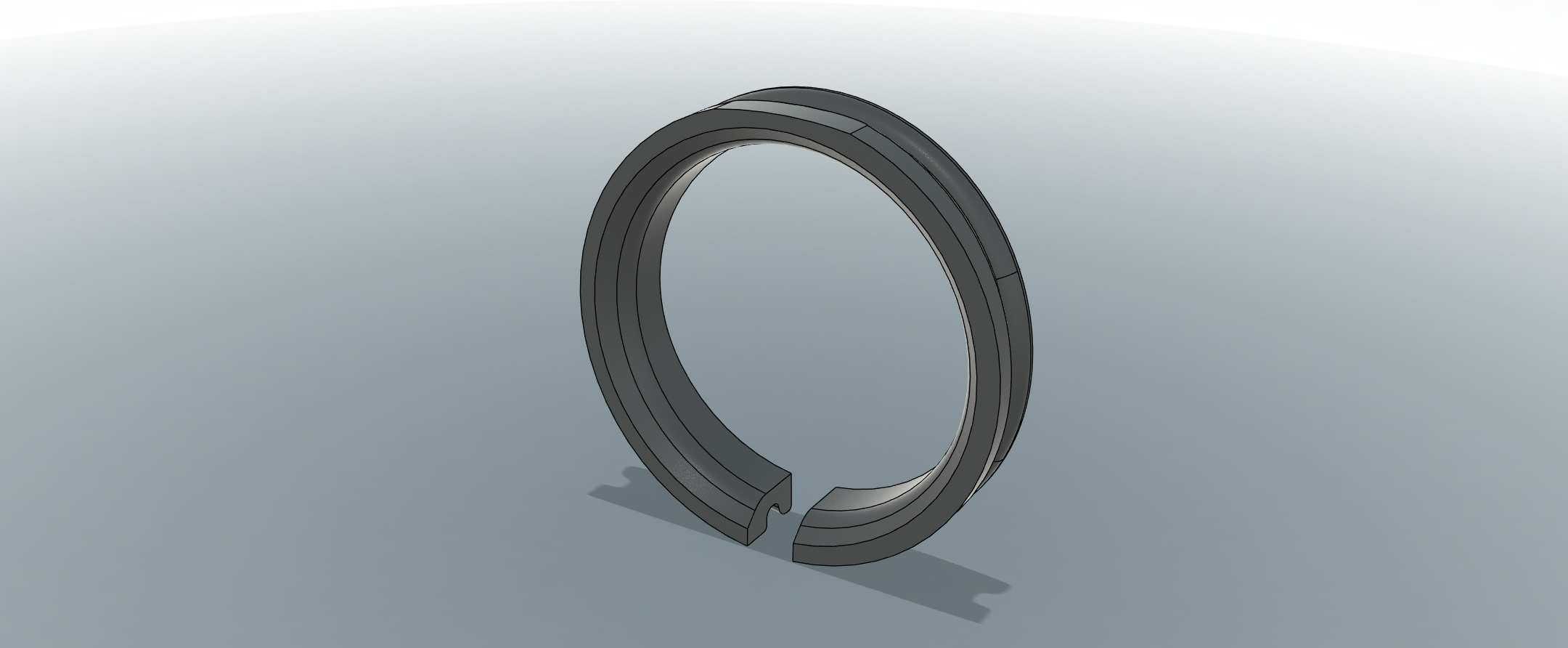

Does not have the Lip on the front: suitable for aftermarket Hubs and wheels without modification. (can be added as a separate piece during checkout)

Compatible with the Drakes Lower Column Shroud Replica or the Oe FD Lower.

Made from high durability ABS with a Stippled Satin Black OEM+ finish.

LHD/RHD compatible/available at checkout.

Designed to fit selected displays, while allowing you to keep your original column shroud and cluster.

Add modern digital function and form, without destroying or modifying your original rare interior parts.

When purchasing as a combo, you will also receive my HD locking tab kit, that clips into the DRAKES FD Lower shroud, and optionally screws through the upper clamshell (for select displays)

Hybrid Clip design is forwards and backwards compatible, allowing more secure mounting when

paired with the DRAKES Lower Column Shroud , Available together for a combination discount.

40mm maximum gauge depth for enclosed 52/60/66mm pods. Mechanical Gauges MAY not fit without hitting cluster.

Billet RAMBALL swivel and Magnetic mount included for the “Round Magnetic Mount” Option

This is for OFFROAD USE ONLY

email me for additional options or questions (shanedrakeairforce@gmail.com)

MAP LID ONLY

Now Available, an UPDATED design for the DRAKES map lid

RHD or LHD available!

If you want the Vinyl Top Coat Finish (Smooth) you must also purchase a Map Pocket Box Combo and select accordingly.

My most popular part is now better than ever, my 2024+ map lids have been completely redesigned to better match the OEM Design and fitment.

I have increased the strength in the Brass Hinge pin, making it thicker and a bit easier to install.
The plastic bushing has been eliminated due to redundancy.
Fits OE Mazda Map Pocket Boxes or the DRAKES Map Pocket Box
No Longer says “DRAKES” on the underside in LARGE lettering allowing for a smoother and cleaner finish

There is a Brass install pin supplied, and the hinge is sized to the OEM bushing

Made with ABS

Hand Finished (SEM products) to replicate the Mazda stippled mold finish offered on most FD Rx7s

Replacement Window Button for Mazda window switches.

No longer do you need to swap out an off brand switch or jerry rig your existing broken one.

pop out the broken button and replace it with one of these DRAKES Replacements.

Confirmed to fit:

FD Rx7

Eunos Cosmo

…

Driver and Passenger switch assemblies, AUTO window button compatible

**These are made using SLS Resin manufacturing technology, your long-term feedback assists development and future improvements**

FD Headlight Switch Blank:

ABS Blank for Headlight Hole in cluster.
I designed this to fit SNUG with minimal gapping on an OE Cluster.

Finished with SEM satin stippled black products

RHD and LHD available.

Additional Options available upon contact

LHD and RHD Available (select at checkout)

Drivers Door Vent:

Made from ABS+ Plastic (FDM), Threaded Brass inserts and Stainless hardware

Options include:

FD Rx7 OE+ Replica Vent: Aluminum deflector Axles, robust design, and a smoother diffuser action. This is an UPGRADE from OE

FD Rx7 STATIC OE REP Vent: slats are fixed in place for a cheaper option

FD Rx7 52mm Swivel Vent Adapter: still allows SOME airflow, and around 10 degrees of adjustability for the gauge.

FD Rx7 60mm Door Vent Adapter: Fits a standard 60mm gauge

FD Rx7 RAM BALL Magnet Door Vent Adapter: Magnetic Phone Mount on a Billet Swivel/RAM Ball mounted to my FD Door Vent Adapter.

Vent Support Bracket: Reinforcement bracket for the OE Trim and mounting posts for EVO R and other CF Door Cards.

For other options please inquire

Made from durable High strength ABS
Stippled Black Texture finish
Comes as a Set of Two.

TWEETERS NOT INCLUDED

Save your fragile OEM triangle trim pieces, and rock out with these Tweeters or Replacements
These are designed to specifically run the tweeters specified.

Disclaimer: These MAY fit OTHER Tweeters/Models that have similar bodies and shallow mounting depth, if you find out please let me know so I can add that to the options.

Tired of breaking your brittle FD parts every time you want to remove something? here are some revised clips that snap in but don’t grab or rust in place like the NLA metal oem ones.

The design of the oem clips, means the tail of the clip can hang up on the ledge it latches to, often they will corrode and catch causing the brittle ABS parts to shatter upon removal.

Mine have a tailored design that wont grab and requires a lighter amount of force to install and remove.. while still providing adequate hold.

These clips are found on several trim pieces including the Dash Speaker and Shift Surround. These will work on ALL of my FD Dash Speaker Options.

Price is for a set of 2, material is FDM ABS

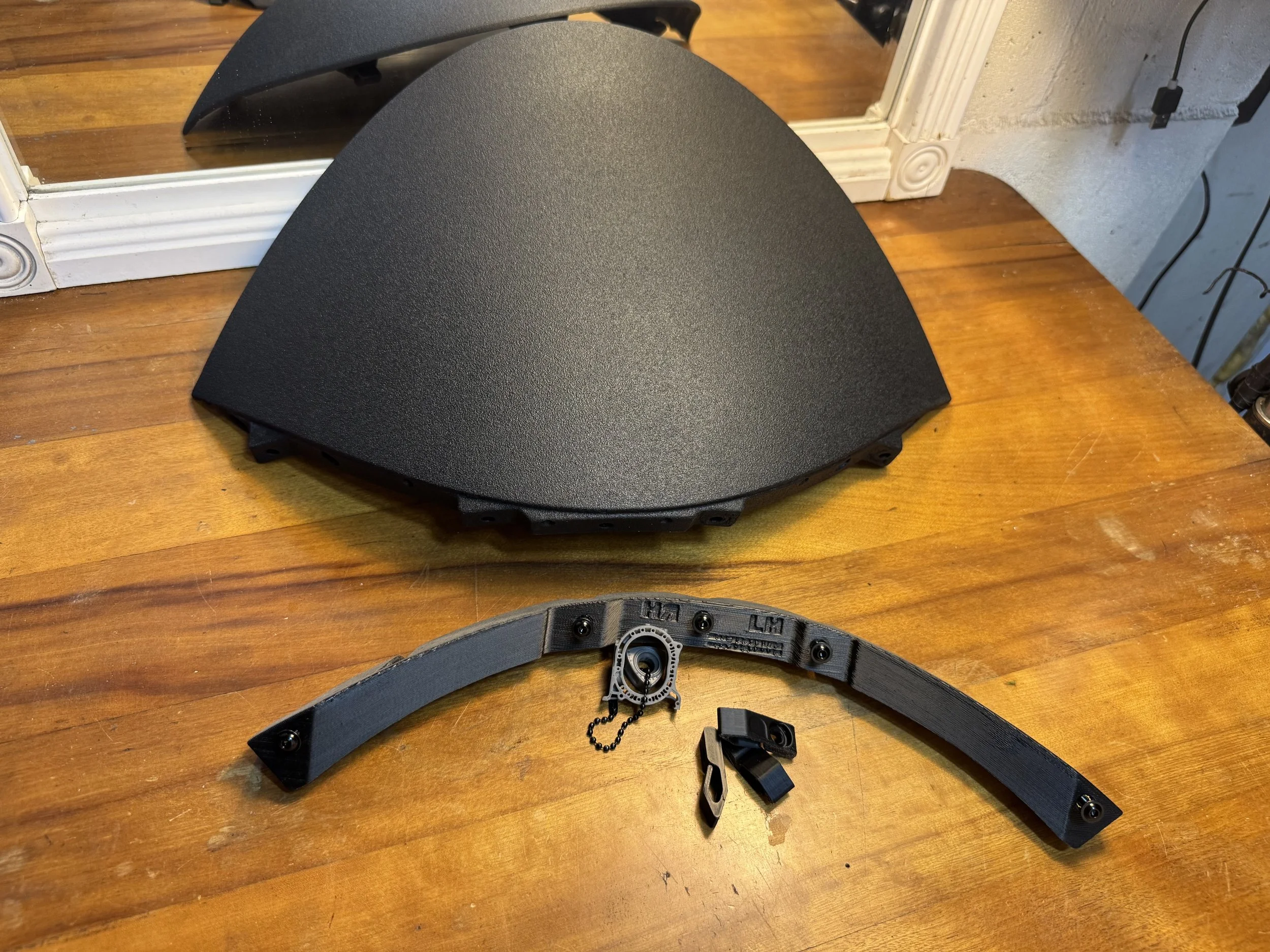

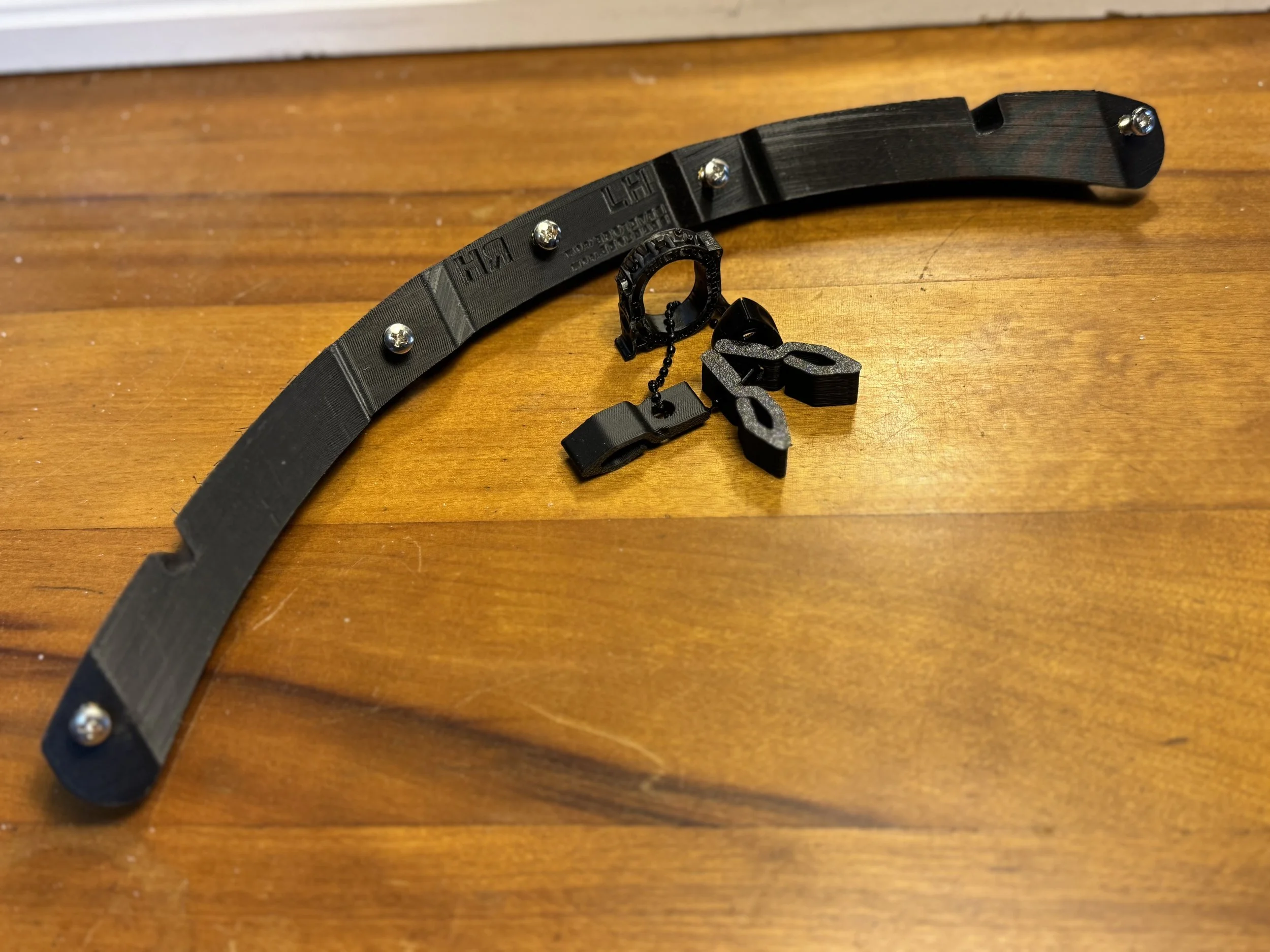

Tired of breaking your meterhood every time you want to remove it? here are some revised clips that snap in but don’t grab or rust in place like the oem ones.

The design of the oem clips, means the tail of the clip can hang up on the ledge it latches to, often they will corrode and catch causing the brittle meterhood to shatter upon removal.

Mine have a lengthened tail that wont grab and require a lighter amount of force to install and remove.

Price is for a set of 3, material is FDM ABS

1” RAM-BALL Radio Mount for the FD Rx7

This is a recessed M8 RAM mount in an ABS enclosure. the Front Fascia is a separate piece that secures with four M3 screws.

comes with 1x M8 RAM Ball and Billet Swivel, 3x M8 Heat inserts installed for variable mounting layouts.

ADAPTER NOT INCLUDED

Add IC7 RAMBALL Adapter or choose from many others here: https://www.draklore.com/adapters/ramballadapter

FD Radio Delete Panel for 15Button keypads-
i have a version that Fits the MOTEC/HALTEC 15 position CAN Keypad which share the same dimensions

The Blink Marine 15Button Keypad is Slightly larger and cannot accommodate any additional features.

To Add: USB, Rotary Dial switches, CAN BUS connector, Network pass through or the Flush Mount Bezel it will add a 50$ customization fee.

Please select the appropriate options when adding to your cart.

Message me for additional options or customization.

Fits Together Securely with M3 hardware, No Double Din Cage.

Made from Durable ABS Plastic, comes with hardware.

Radio Delete Panel-
Remove the radio cage, bolts directly to dash frame.

Multiple options available

FT450/550/600 compatible

Divided Bins

Open Bin

ABS Blank

CF Blank

Made from Durable ABS Plastic
Comes as 2 pieces in some applications, hardware included

Stippled black texture finish for all visible ABS surfaces

LHD and RHD available (specify at checkout)
Made from durable ABS, this adapter puts the IC7 in the center of the action.
looks cool, OEM Textured finish

2025 Update:

Functional Vent with bypass for air control

better viewing angle, aligned with radio

functional tabs, spring ball detent bracket for ease of use.

install without removing dash (dash must be removed to install upgraded bracket.

Quickly swap to OE Vent)

easily access the Haltech Mount bolts with vent removed.

Choose from a variety of Single Din panel options:

CF Blank

Gauge and Pocket

8 Button Keypad mount **

Single Gauge and 8 Button Keypad Mount

8 Button w/ Fuel Tech Nano or Nano Pro!

Dual Nano or Nano Pro

Haltech Rotary Dial W/Keypad mount

And more options by request

The 8 Button PDM applies to both the Haltech and Motec variants

Parts are ABS FDM Plastic, or CF Composite.
Finished in a textured automotive SEM paint.

**The MOTEC Keypad is TIGHT as it is larger than a single din by 1.5mm

please be advised you may need to finesse or trim the edges for a GOOD fit.

Various Options for people who have removed their OE Electronic Controlled Mirrors

Options Include:
Blank

Coin (Holds 8 US Quarters 25mm)

M6 Threaded Adapter (go pro, camera etc)

M8 Threaded Adapter (Phone Mount, RAM BALL etc)

made from durable ABS, two pieces with threaded inserts and stainless screws

LHD and RHD Compatible

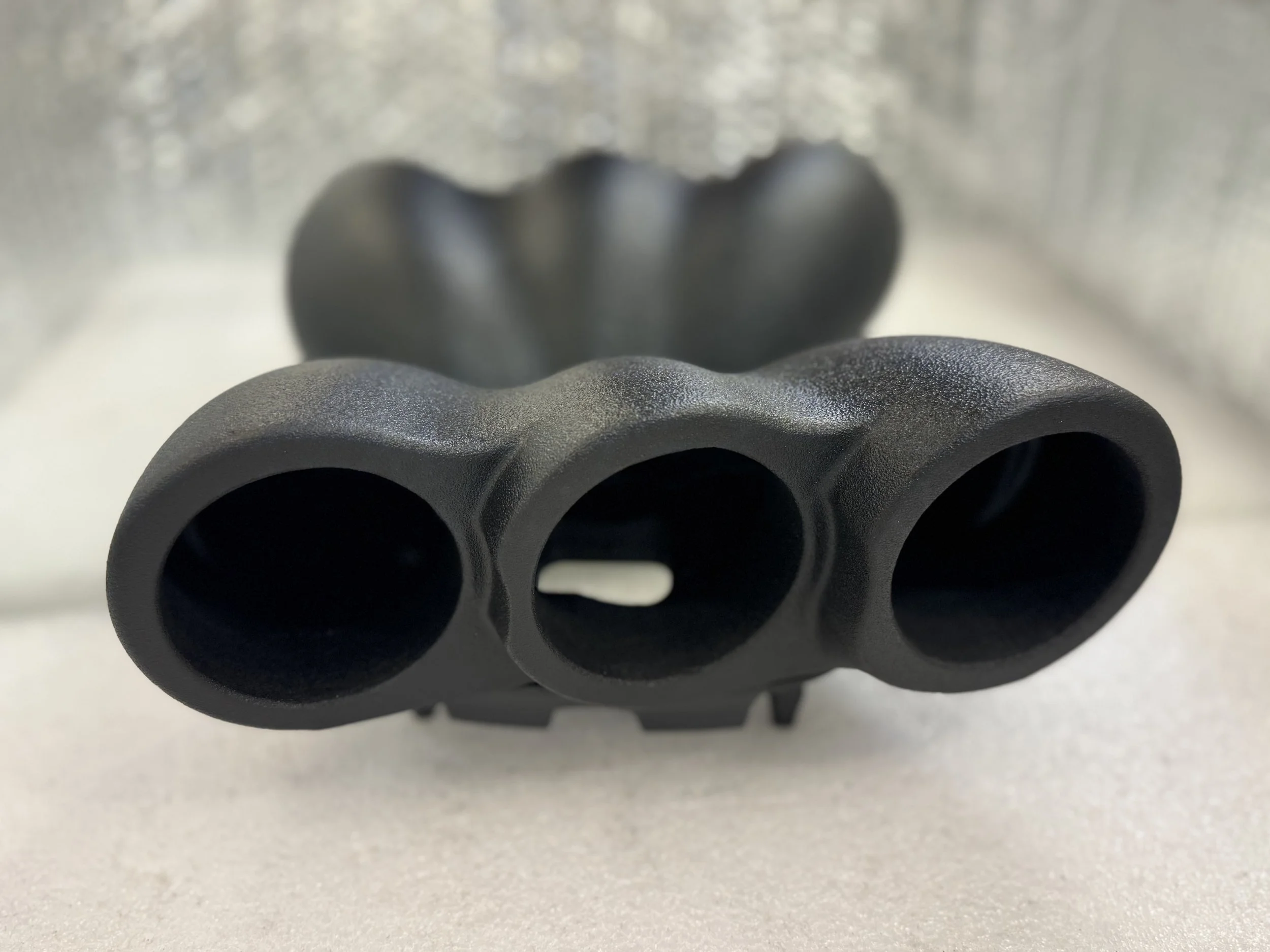

Triple gauge pod for FD3S

please specify either 60mm or 52mm

will fit most modern gauges, if you are unsure please contact me for specific dimensions.

**Now even more low profile, 60mm picture is not accurate representation of current version Pod Height

Made from ABS

Clips included

Swivel base
