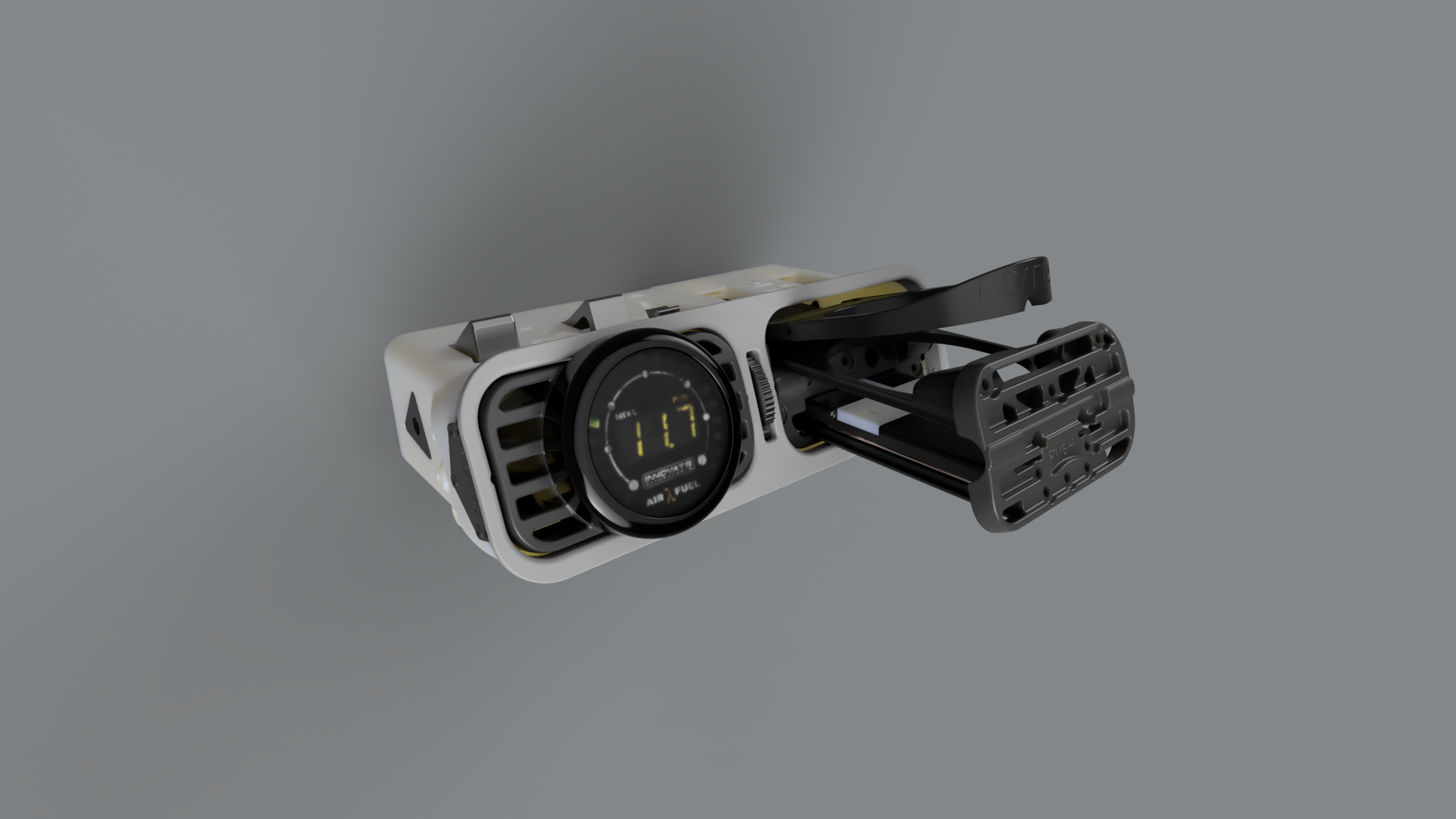

OE *Style* Dual Vent Housing for the S13

NO Vents or INSERTS INCLUDED unless selected at checkout!

Comes Fully Assembled

RAW ABS+ hand burnished fascia plate and assembly

Upgraded functionality with bearings and bushings instead of plastic to plastic (Like OE)

Screw points are all brass inserts and M4/M3/M2 hardware

Thicker reinforced body and robust gears and diverters.

Removable and replaceable tabs

My inserts WILL Work and be backwards compatible with the OE Vent, BUT they DO Work MUCH BETTER in my vent hands down.

The RAM BALL Mount DOES NOT fit in the OE Housing

OE Vents DO NOT work in my vent housing

Each Diverter has two M3 screw anchor points for the various pop in accessories for optional added security although unlikely to be needed
DRIFT TESTED with an IC7 RAMBALL Mount (Thanks @hdtautomotive)

What You Get-

S13 Vent Body

Diverter Flaps

Fascia Plate

Half Gear and Diverter Shaft

Dial Wheel Selector

4x Dash Clips

2x Blocker Tabs

4x Blank Tabs

Side Strap Kit

Available Inserts:

OE style Vent- has slats for side to side air adjustability, a set screw on the side provides SOME friction for the vertical adjustability since the bearings do not!

Cup Holder- OE

RAM BALL Mount- NOT OE COMPATIBLE. please see FUTURE LINK For available RAM Adapters, can be hard mounted with two inset M3 screws

52mm Gauge- Designed to fit the MXTL or other CAN BUS gauges (haltech, BTI etc), it will also accept other 52 mm Gauges with similar body depths or shallower.

Fuel Tech Nano and Nano Pro- Flush Mount Nano mount that pops in and out. unplug it and take it with you!

and many more to come upon request..

The inserts pop in and out, with spring loaded detents. air passageways in the adapters retain airflow where possible.
If you need MORE VENT, check out the S13 SUPERVENT

Please EMAIL me at SHANEDRAKEAIRFORCE@gmail.com to request options, ask questions or make suggestions
